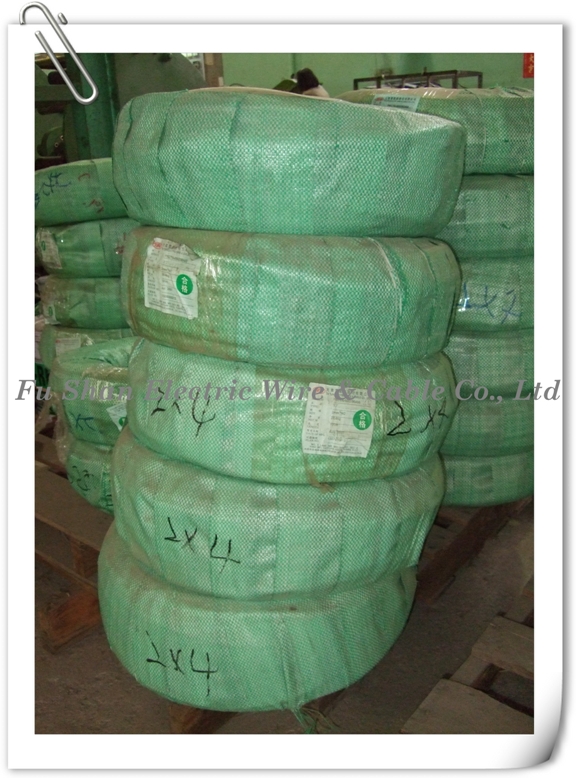

Rubber Flexible Cable
Code
2CT
Voltage 600V
Conductor
Stranded Tinned Soft Copper Conductor
Environment temperature -50
℃~
60 ℃
Insulation
Natural rubber
Standard length 100M
Characteristics / Application Durable for low temperature
This product
is certificated by the Bureau of Standards, Metrology & Inspection,
M.O.E.A, R.O.C. (no.6611)
Brand of Product: TATUN.
Specification
Download
|
Conductor |
Thickness
of
insulation
mm |
1C |
2C |
3C |
4C |
Max.
conductor
resistance
Ω
/ km(20℃) |
Insulation
resistance
MΩ
/ km |
|
Nominal
sectional
area
mm2 |
Number
& Diameter of wire
mm |
Thick-ness
mm |
Overall
diam.
mm |
Thick-ness
mm |
Overall
diam.
mm |
Thick-ness
mm |
Overall
diam.
mm |
Thick-ness
mm |
Overall
diam.
mm |
|
0.75 |
30 / 0.18 |
1.1 |
1.5 |
6.4 |
1.8 |
10.5 |
1.8 |
11.0 |
1.8 |
12.0 |
26.6 |
1000 |
|
1.25 |
50 / 0.18 |
1.1 |
1.6 |
7.0 |
1.8 |
11.5 |
1.8 |
12.0 |
1.9 |
13.0 |
16.0 |
1000 |
|
2.0 |
37 / 0.26 |
1.1 |
1.6 |
7.3 |
1.8 |
12.0 |
1.9 |
13.0 |
2.0 |
14.0 |
10.2 |
1000 |
|
3.5 |
45 / 0.32 |
1.1 |
1.6 |
8.0 |
1.9 |
13.5 |
2.0 |
14.5 |
2.1 |
16.0 |
5.54 |
1000 |
|
5.5 |
70 / 0.32 |
1.1 |
1.7 |
8.8 |
2.0 |
15.0 |
2.1 |
16.0 |
2.2 |
17.5 |
3.56 |
900 |
|
8 |
50 / 0.45 |
1.1 |
1.7 |
9.4 |
2.1 |
16.5 |
2.2 |
17.5 |
2.3 |
19.5 |
2.52 |
800 |
|
14 |
88 / 0.45 |
1.4 |
1.8 |
11.5 |
2.3 |
21 |
2.4 |
22 |
2.6 |
24 |
1.43 |
700 |
|
22 |
7 / 20 / 0.45 |
1.4 |
2.0 |
14.0 |
2.6 |
26 |
2.7 |
27 |
2.9 |
30 |
0.919 |
600 |
|
30 |
7 / 27 / 0.45 |
1.8 |
2.1 |
16.5 |
2.9 |
30 |
3.0 |
32 |
3.2 |
36 |
0.681 |
600 |
|
38 |
7 / 34 / 0.45 |
1.8 |
2.2 |
17.5 |
3.0 |
32 |
3.2 |
35 |
3.4 |
38 |
0.541 |
600 |
|
50 |
19 / 16 / 0.45 |
1.8 |
2.2 |
19.0 |
3.2 |
35 |
3.3 |
38 |
3.6 |
42 |
0.423 |
500 |
|
60 |
19 / 20 / 0.45 |
1.8 |
2.3 |
20 |
3.4 |
38 |
3.5 |
41 |
3.8 |
45 |
0.339 |
500 |
|
80 |
19 / 27 / 0.45 |
2.3 |
2.5 |
24 |
3.7 |
44 |
3.9 |
48 |
4.2 |
53 |
0.250 |
500 |
|
100 |
19 / 34 / 0.45 |
2.3 |
2.6 |
26 |
4.0 |
48 |
4.2 |
52 |
4.5 |
58 |
0.199 |
500 |
